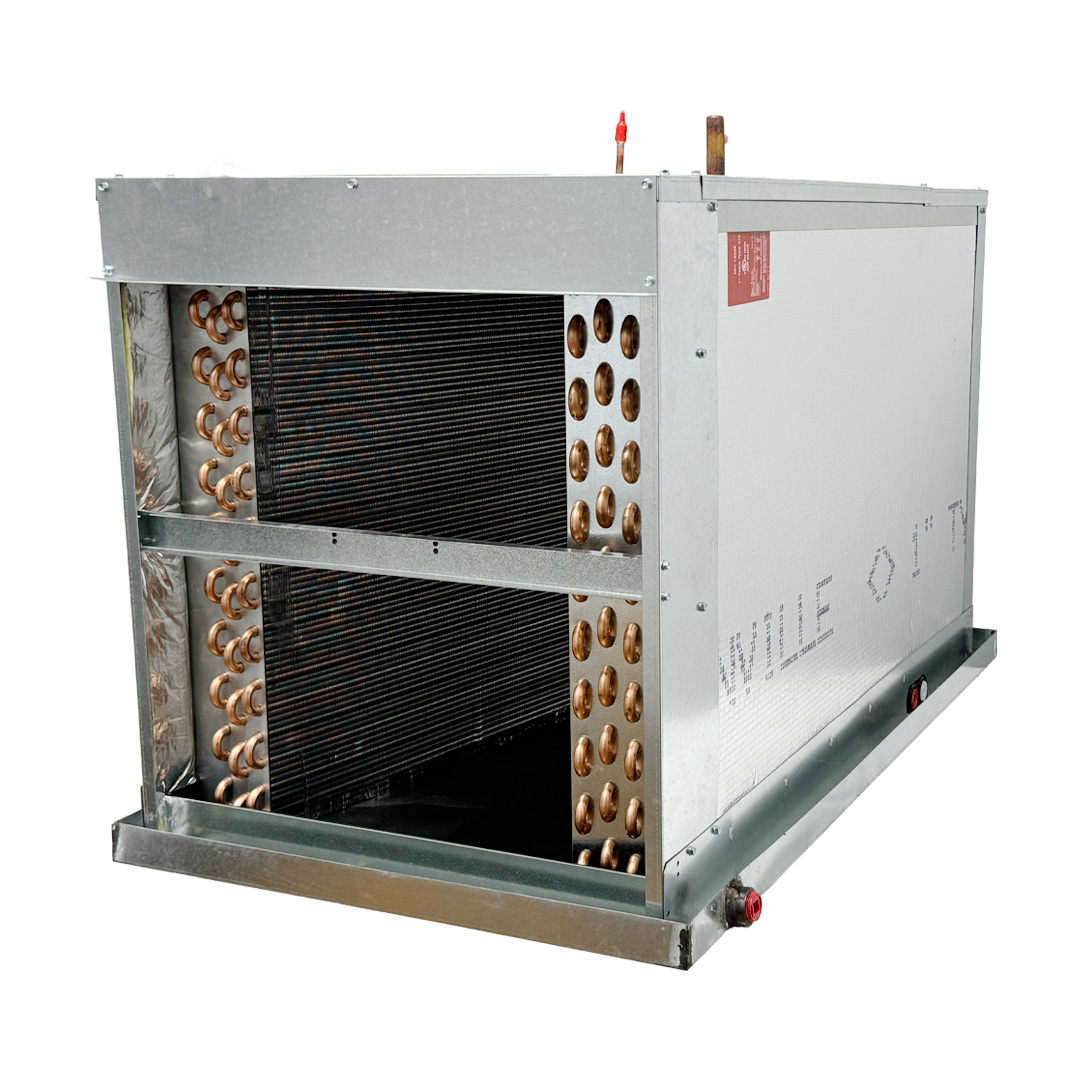

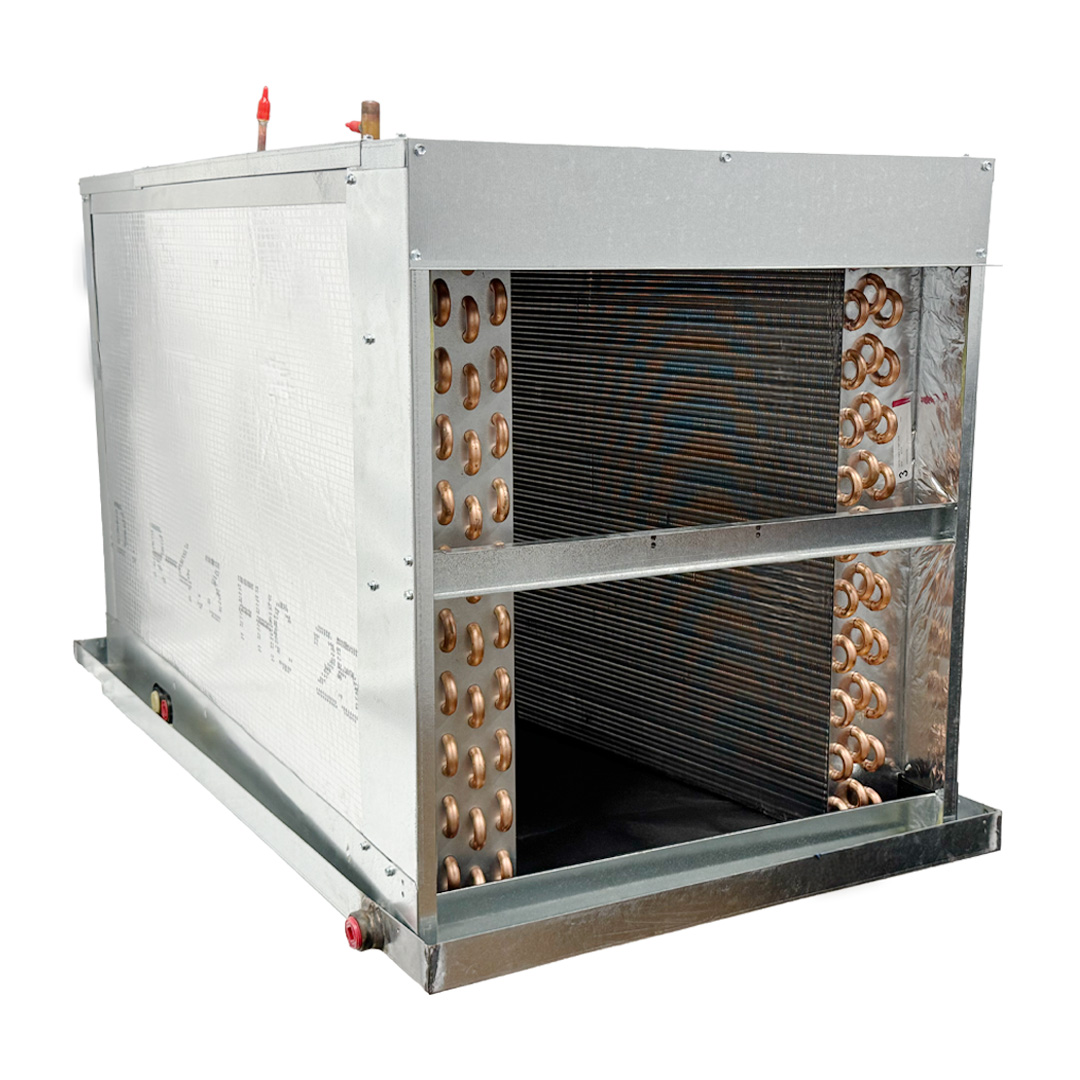

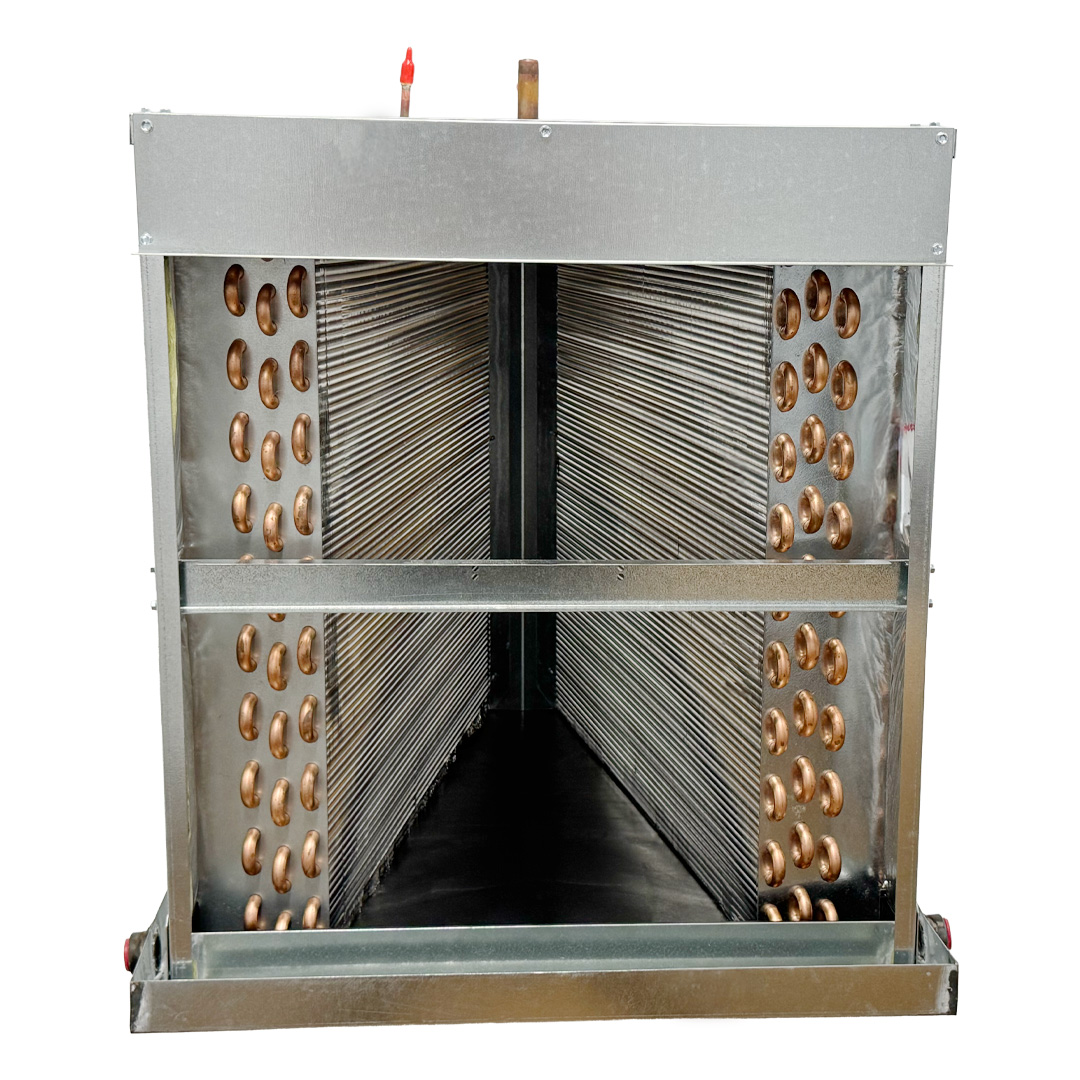

CP Series Dedicated Horizontal Coils with Plenum

Features and Benefits

APPLICATION VERSATILITY
• AHRI certifiable with all brands of A/C and heat pump systems.
• ETL listed for use with R-22, R-410A, R-454B, and R-32 when proper metering device is used.

FEATURES
• Rifled copper tubing, enhanced aluminum fins.
• Three-piece access doors on top of the coil for easy service.
• Fully insulated cabinet with plenum sides and back constructed of foil-backed, faced, one-inch thick, fiberglass duct board.

REFRIGERANT & PLUMBING CONNECTIONS:
• Immersion-tested at 500 psi, then nitrogen-pressurized and sealed.
• Refrigerant lines exit from the top of the coil with Schrader valve for hiss-testing.
— Liquid line – 3/8” ODS
— Suction line
• 3/4” ODS on 1-1/2-ton to 3-ton
• 7/8” on 3-1/2-ton to 5-ton
• Heavy duty plastic pan with 4-3/4” NPT condensate drains on each side of the coil.
• Secondary metal drain pan included with one inch spacing around the cabinet for turnkey installation.

WARRANTY
• Ten-year limited warranty with registration.
